The steel cylinder is made of 5mm thick material. After the steel plate is cut to a standard size, it needs to be matched together. The multiple steel plates of pneumatic dry bulk trailer are connected together by the machine and fixed by double-sided welding.
The 5 axle 60cbm pneumatic tanker trailer tank body of the pneumatic bulk tanker is fixed and changed to an appropriate angle through a rotating machine, and the machine is automatically welded, and double-sided welding is adopted. Through electric control, remote monitoring is used to avoid missing welding.
Install suspension, axles, toolboxes, protective fences, etc. to form a complete 5 axle 60cbm pneumatic dry bulk trailer.

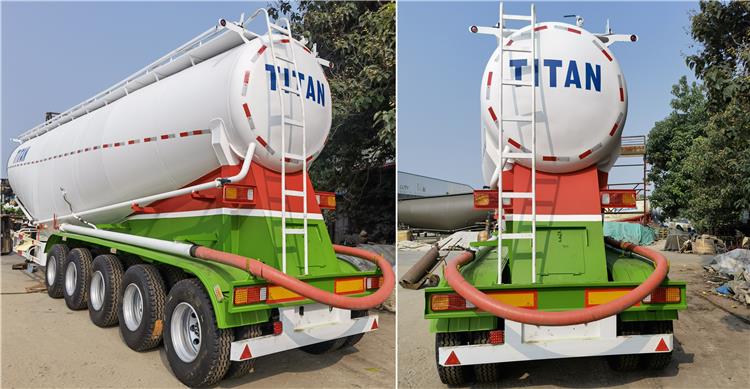

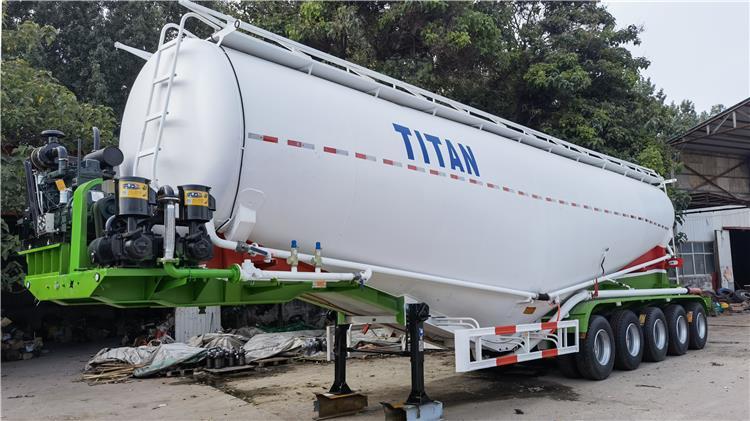

5 Axle 60cbm Pneumatic Dry Bulk Tanker Trailer for Sale
5 Axle 60cbm Pneumatic Dry Bulk Tanker Trailer for Sale

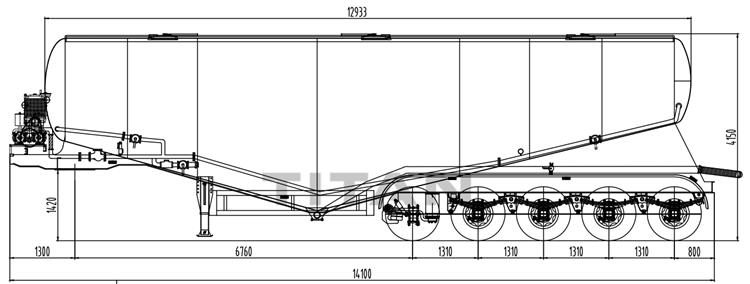

Dimension: 14100mm * 2000mm *4150mm (the exact size depends on the final design.)
Tanker body material : 5mm high strength wear-resistance steel
Payload : 60cbm
Axles：5 axles
Tire：20 units
Application: transport lime, cement, powder etc.
Tank body thickness: 3.5mm
Compressor: 12m³ double cylinder air compressor
Spare tire rack: 2 units
Leaf spring: 10 pieces
Sprinkler: one sprinkler; car waxing
Diesel Engine: WEICHAI Brand
Compressor: BOHAI
Suspension: Heavy-duty mechanical suspension
Landing gear: JOST
Brake system: WABCO
Light: LED light (especially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service life, and avoid the vehicle getting rust
High floor area ratio: the effective rate is nearly 100%, which can produce greater value compared with similar products.
At the same time, 5 axle 60cbm pneumatic tanker trailer also has the characteristics of fast unloading speed: the instantaneous speed can reach 1.4t/min, which is convenient for customers to operate, saves customers' time and cost, and improves efficiency.
Finally, and most importantly, the operability advantages of 5 axle 60cbm pneumatic bulk tanker trailer: compact structure, small turning radius, and convenience for customers to use.
