This type of excavator trailer is also called a super low bed trailer. The main feature of a trailer has a lower loading platform. The cargo platform is positioned lower than the rear half of the trailer.
This type of excavator trailer is also called a super low bed trailer. The main feature of a trailer has a lower loading platform. The cargo platform is positioned lower than the rear half of the trailer.
The lower the platform height of the low bed trailer for sale near me,the better the stability and safety. Our low bed trailer has a large carrying capacity when transporting extra high, medium cargo and other heavy-duty cargo.
A good supplier can provide customized services. We can customize the length, width, number of axles, tonnage, etc.

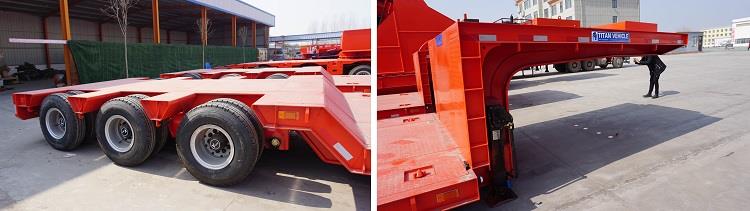

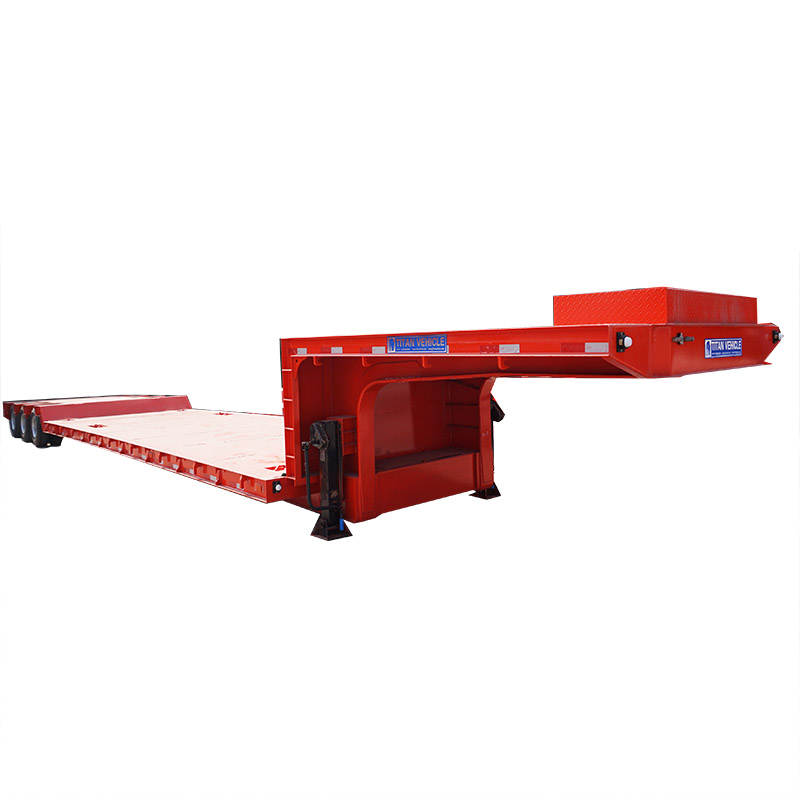

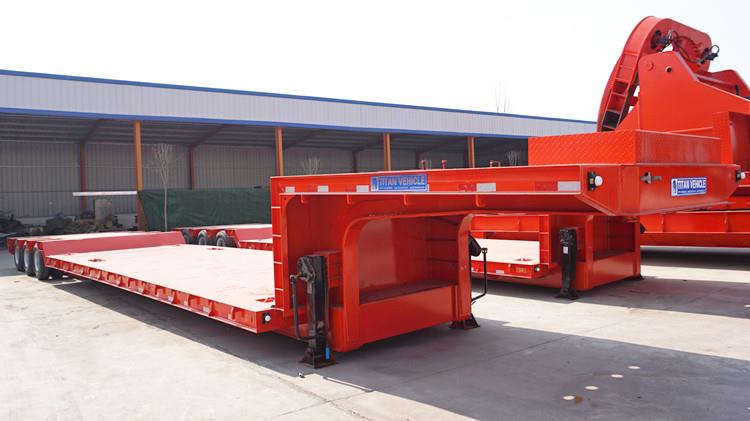

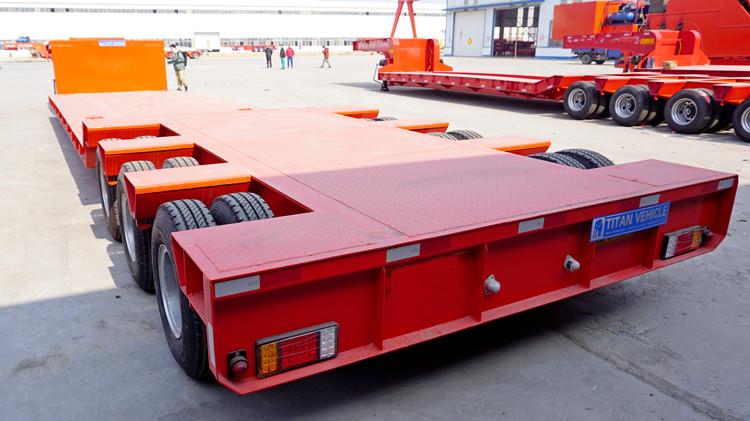

90 Ton Super Low Bed Excavator Trailer for Sale Near Me
90 Ton Super Low Bed Excavator Trailer for Sale Near Me
Overall dimension: 13000mm * 3000mm *1650mm
Loading capacity(T): 90 tons
Axle: 3 axle super low bed trailer for sale
Rim: 8.0-20
Tire: 12units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
