We have many types of hydraulic tipper trailer, such as 30tons-60tons new tipper trailer for sale, 60-80tons tipper semi trailer, and 80-120tons tipper trailers,120-180tons multiple axles semi tipper trailer. We can customize the bucket Volume from 20-80cubic meters.
We have professional engineers team, they know the African bad road conditions very well, they will design the 3 axle tipper trailer for sale to meet your actual transport demand.

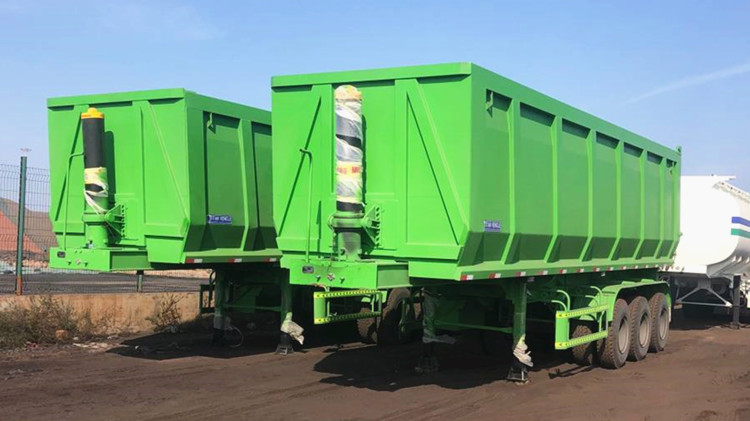

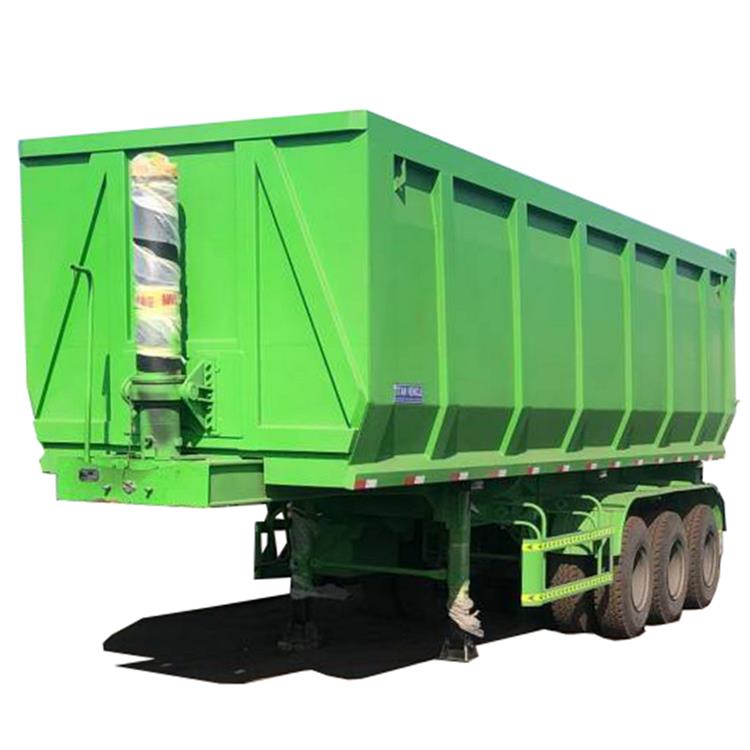

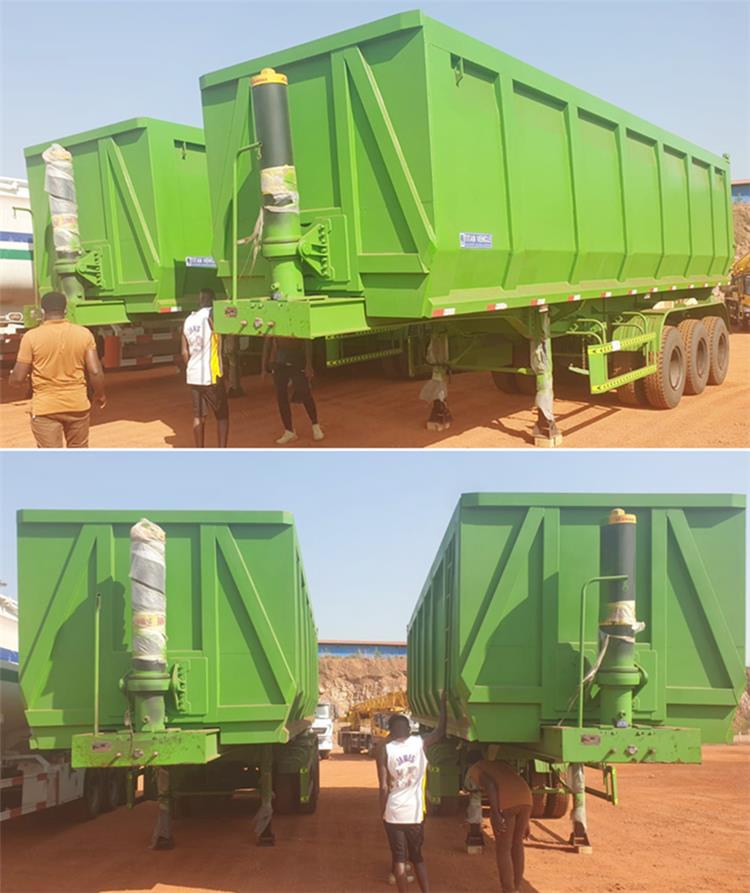

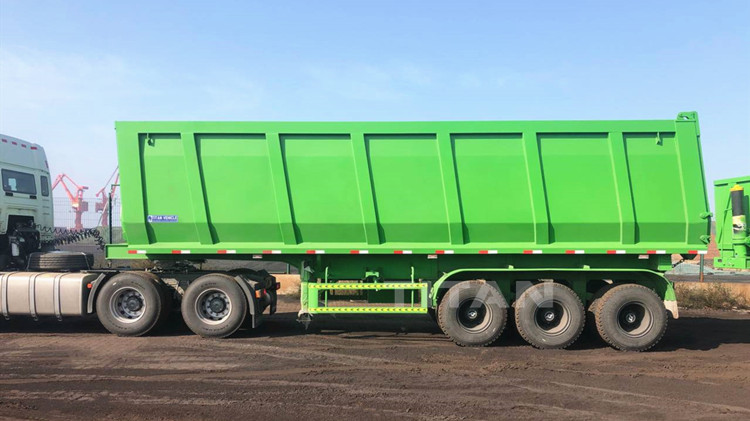

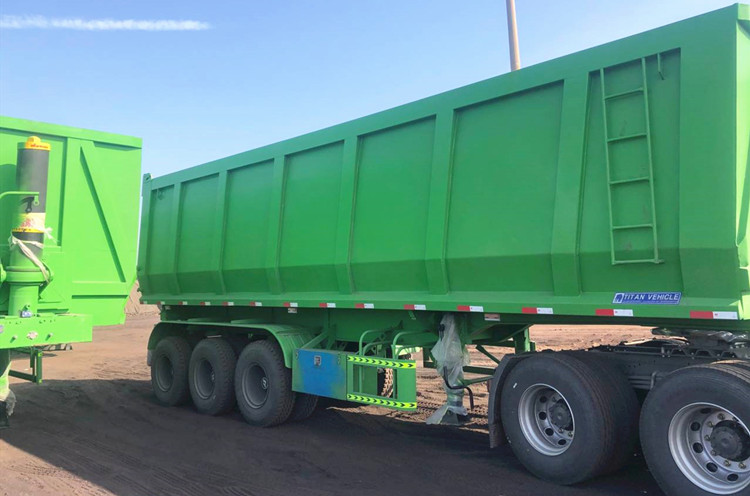

New 3 Axle 33cbm Hydraulic Tipper Trailer for Sale
New 3 Axle 33cbm Hydraulic Tipper Trailer for Sale
Dimension: 10200mmx2500mm x3700mm ( inside dimension )
Total volume(ton): 100Ton
Side wall thickness: 4 - 6mm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 3 Axle, 13T, FUWA
Rim: 8.0-20 or 9.00-20
Tire: 12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.
Bottom Platform: 4-6mm thick checkered plate
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
Advanced Full-automatic Submerged arc welding process. Hydraulic tipper trailer adopts double main design, ensures the smooth, sturdy welding seams and improve its resistance to twisting forces, shock and bump, and meets loading requirements on different kinds of roads.
1. Formed by one time.
2. More sturdy, also bending and bump resistance.
3. Improving the loading capacity and the service life by 50%.
