Tri Axle 45000 Liters Fuel Tanker

Tri Axle 45000 Liters Fuel Tanker

15300 USD

The tri axle fuel tanker trailer can transport various liquids at the same time. Using multiple compartments, these tankers are capable of transporting a variety of liquids

SKU: Tri Axle 45000 Liters Fuel Tanker
MPN: FAWTRAILER019
Brand: Fuel Tanker Trailer

Tri Axle Fuel Tanker Trailer Price: 15300USD

The tri axle fuel tanker trailer can transport various liquids at the same time. Using multiple compartments, these tankers are capable of transporting a variety of liquids, including industrial chemicals, concrete, diesel, milk, gasoline and water.

Each liquid has a different density, which changes the maximum carrying capacity of the tri axle fuel tanker trailer for sale.

WABCO emergency valve, high braking performance& ensure driving safety. JOST E 100 Landing gear, durable quality than other ordinary landing gear. 16 ton brake pads, can improve 20% brake performance than 13 ton brake pads. Anti-skid metal grilles walkway can be done to the customer's requirements.

Tri Axle 45000 Liters Fuel Tanker Trailer for Sale Price

Tri Axle 45000 Liters Fuel Tanker Trailer for Sale Price

Tri Axle 45000 Liters Fuel Tanker Trailer for Sale Price

Tri Axle 45000 Liters Fuel Tanker Trailer for Sale Price

Tri Axle 45000 Liters Fuel Tanker Trailer for Sale Price



Specification of Fuel Tanker Trailer:

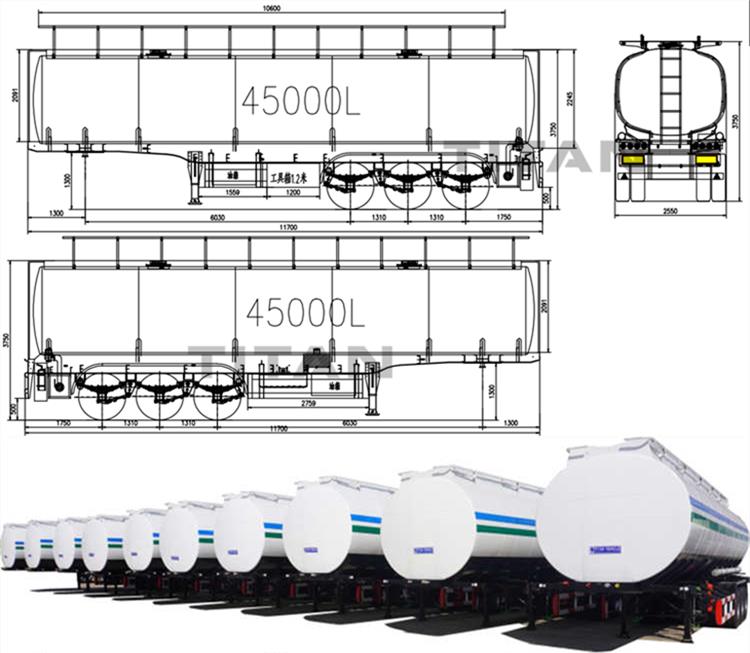

Dimension: 10600mm * 2550mm *3750mm

Tare Weight (semi trailer): About 8000-12800kg

Total volume(L): 45000 Liters

Tank Body Material: Q235 carbon steel

End plate: Q235 carbon steel

Manhole Cover: Carton steel

Bottom Valve: Aluminum  API Pneumatic Bottom Valve

Compressor: BOHAI 10m³/12m³ or other brands

Discharging Valve: Diameter is 3 or 4 inch

Compartments: Single Compartment

Discharging Pipe: 4 inch rubber hose,2pcs,6m/each

Cat Walk: With (common model or special design)

Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

Axle: 3 axles,13T,FUWA

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin

Suspension: Mechanical suspension

Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers

Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank

Rim: 9.00-22.5Chinese brand

Tire: 12.00R22.5

ABS: Optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool box

Shipping Terms: By bulk cargo, RORO or 40HQ containers

Tri Axle 45000 Liters Fuel Tanker Trailer for Sale Price



45000 Liters Fuel Tanker Trailer Parts

Manhole cover: The manhole cover is specially designed, it has many functions, which can guarantee the safety of the tri axle fuel tanker trailer to a certain extent.

Safety valve: An important component of the manhole cover is the safety valve. The valve is used to automatically regulate the internal pressure of the tank to ensure the safety of the tri axle fuel tanker trailer and also to reduce the volatilization of oil.

Valves: ADR standard Valves, widely applicable for the major oil companies, high quality ensure a longer service life.

Oil and gas recovery valve: When load and unload, we will definitely use the oil and gas recovery valve, which can recover the excess volatile oil and gas, not only to reduce waste but also to ensure safety.

Fuel outlet valve: We have a special design for the fuel outlet valve, which can better guarantee that when we dismantle the joint, there will be no fuel leakage. The internal structure is more in line with fluid mechanics, and when there is a large flow of goods out, the internal pressure can be balanced.

Subsea valve: The subsea valve is usually installed at the bottom of the tank, usually, its role is in the fuel tanker trailer for sale after an accident, in order to prevent the transport of liquid fuel leakage, resulting in greater economic losses, once the accident, the subsea valve will automatically cut off the pipeline within 3 seconds to ensure the safety of the transported goods.

Anti-spill sensor: When load in liquid fuel, Can’t detect how much has been added every moment, at this time, we need to use the overflow prevention sensor, when it reaches the specified height, the alarm will sound.

Tri Axle 45000 Liters Fuel Tanker Trailer for Sale Price

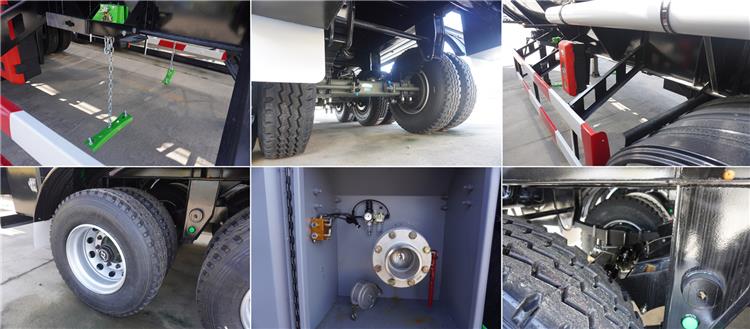

Details of 3 Axle 45000 Liters Fuel Tanker Trailer

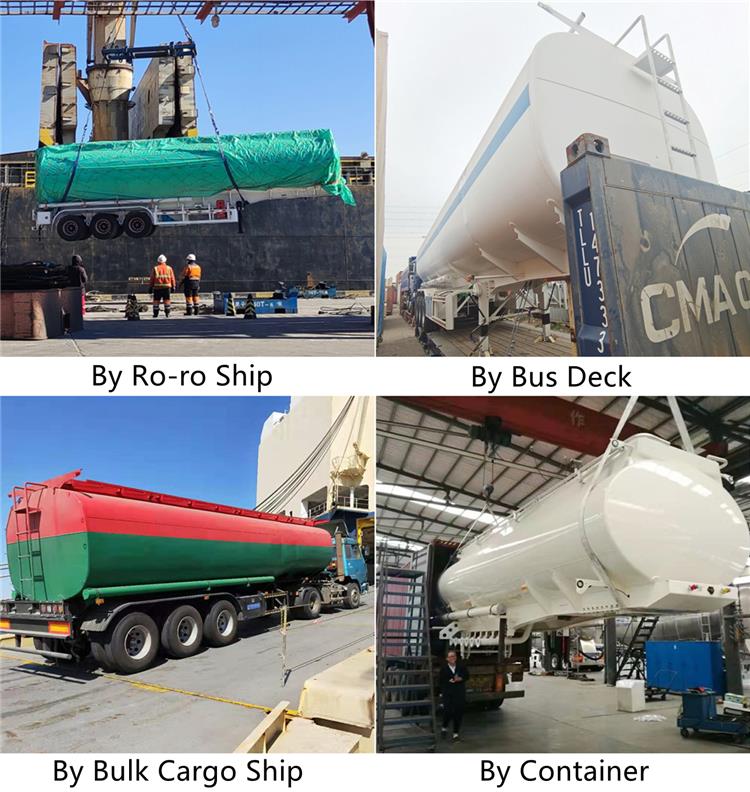

Packaging of Semi Tanker Trailer

Generally, fuel tanker trailers can reach customers after 7-25 days of transportation; we will do an excellent job to protect the fuel tanker trailer from the seawater before transport.

Tri Axle 45000 Liters Fuel Tanker Trailer for Sale Price
