40 ft side lift trailer is used for loading and unloading 40ft container or 20ft container. Side lift container trailer has made work flexible, Saves time and improves productivity for satisfied customers around the world. We adopt world famous brand parts of the side lift trailer for sale.
The side lift container transport trailer technology can effectively solve the problem of no loading and unloading machinery. The military of many countries has been equipped with container loading trailers.

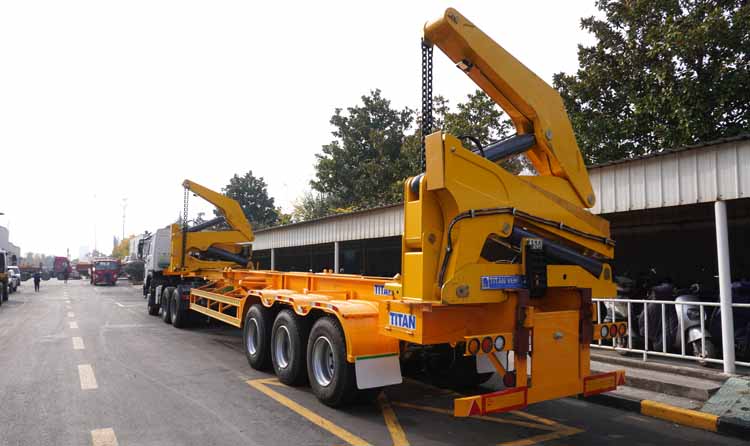

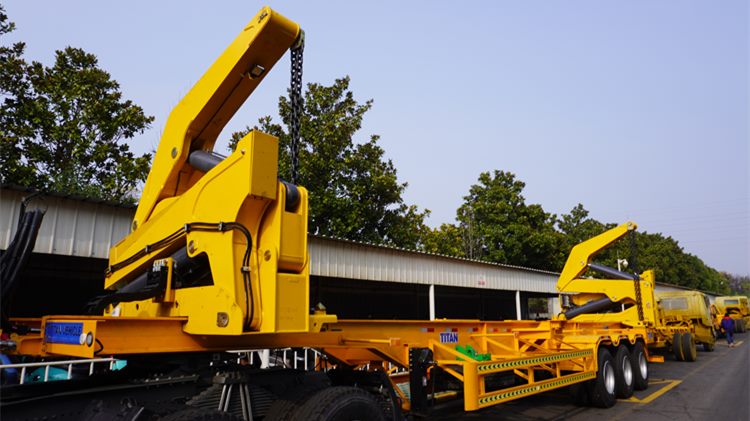

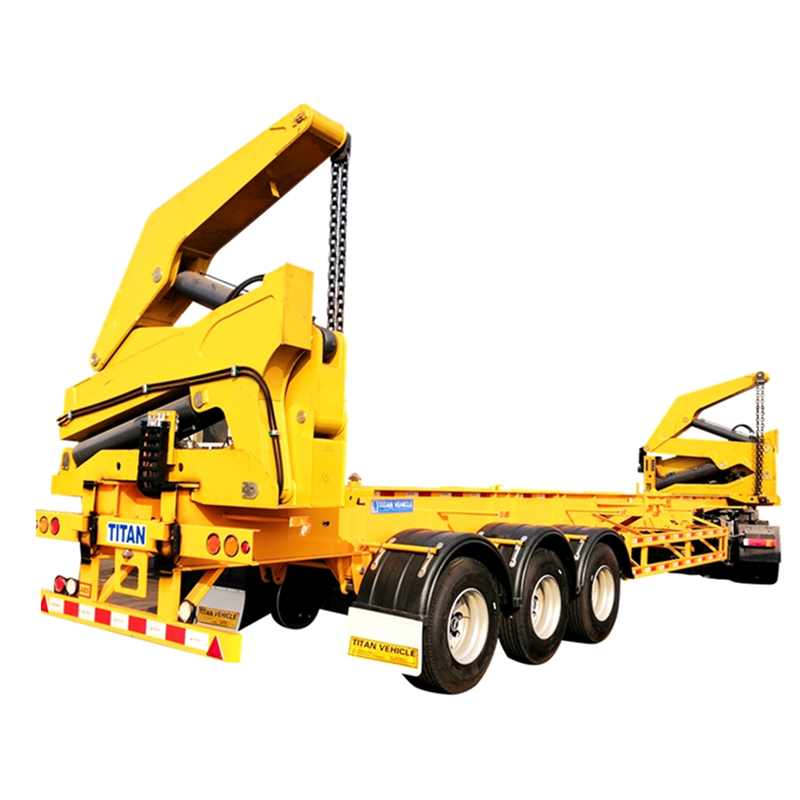

20/40 FT Side Lift Container Transport Trailer for Sale
Function: Load 20/40ft container
Max. lifting capacity: 37 Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Max.pressure of hydraulic system: 28Mpa
Dimension(L*W*H): 13900*2500*3900mm
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
