China side lifter trailer is used for loading and unloading 40ft container or 20ft container. The 40 ton side lifter for sale is the most popular model in the world.
The container side lifter trailer for sale is an all-around model, excellent for both ground-level lifts and transferring to/from another chassis. It is the best choice when you need high versatility and maximized payload on the road.

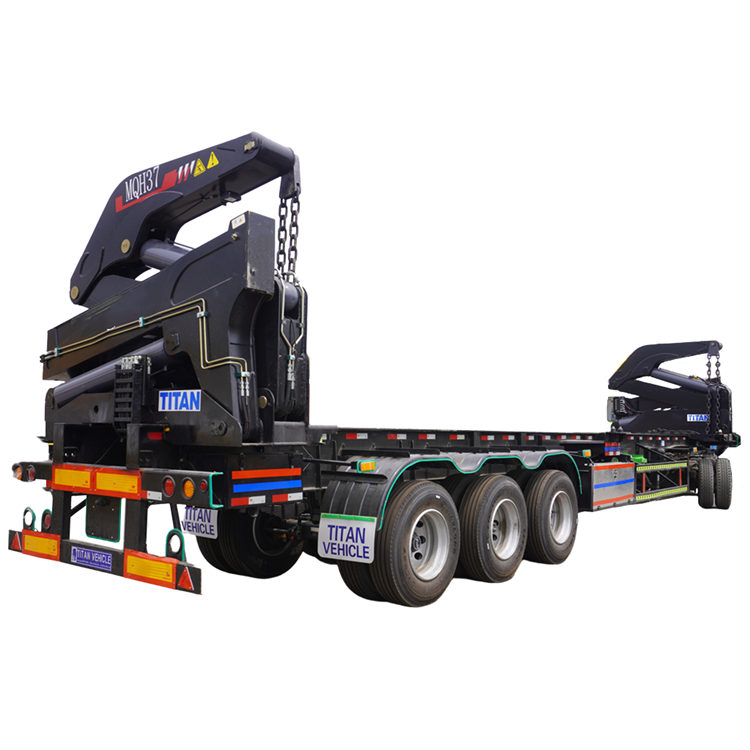

China 40 Ton Container Side Lifter Trailer for Sale
China 40 Ton Container Side Lifter Trailer for Sale
China 40 Ton Container Side Lifter Trailer for Sale
Max. lifting capacity: 40 Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Max.pressure of hydraulic system: 28Mpa
Dimension(L*W*H): 13900*2500*3900mm
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
Side lifter trailer can slide to load/unload 20ft container. 40 ton side lifter trailer are widely used in ports, stations and yards for load/unload 20ft ISO standard containers.
High lifting capacity. China side lifter for sale has the highest lifting capacity, the max. lifting capacity up to 37 tons.
Power take off(PTO). Container side lifter trailer equip with power take off as standard, the hydraulic system with power take-off has a low tare weight and minimum diesel consumption.
Wireless remote control technology. 40 ton container side lifter equipped with wireless remote controller and manual operation, convenient and safe operation for the operator.
