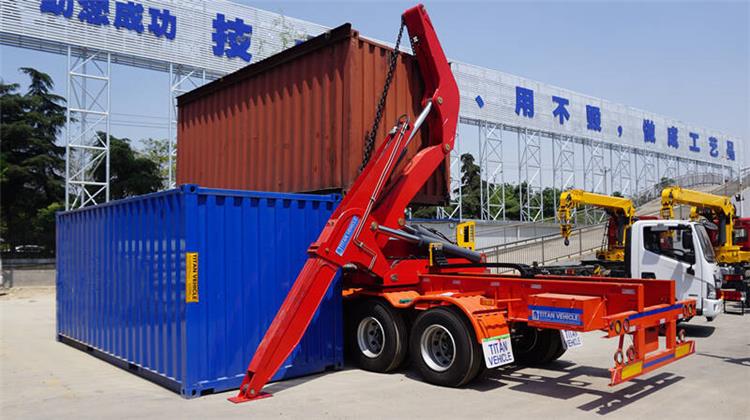

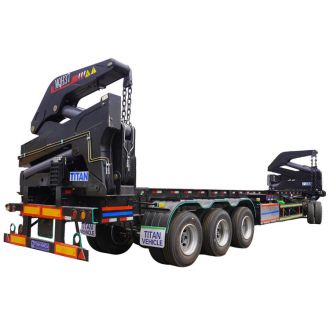

The 40 ft container sidelifter trailer for sale is the most popular model in the world. It's designed with versatility in mind and is available with a lifting capacity of 25, 37ton, 40ton, 45ton.
The 40 ft container sidelifter trailer for sale is the most popular model in the world. It's designed with versatility in mind and is available with a lifting capacity of 25, 37ton, 40ton, 45ton.
The support legs are extending and tilting, making their positioning very versatile.

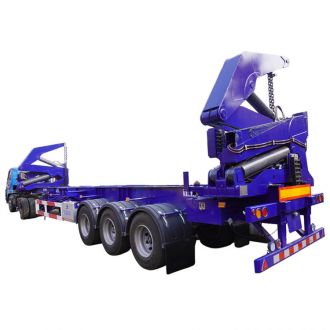

The 37 ton sidelifter trailer for sale is an all-around model, excellent for both ground-level lifts and transferring to/from another chassis. It is the best choice when you need high versatility and maximized payload on the road.

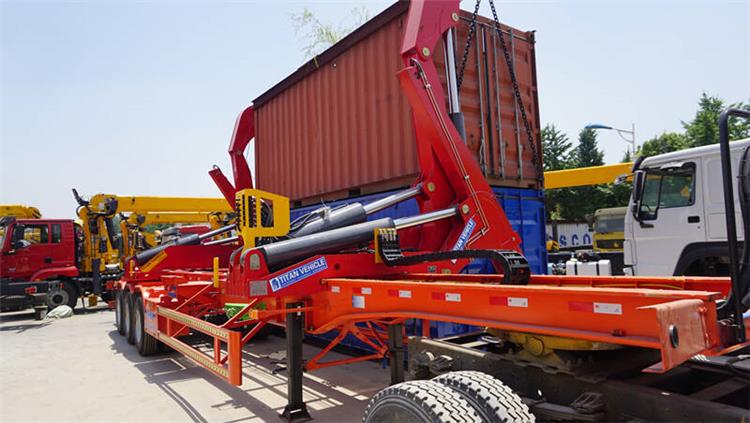

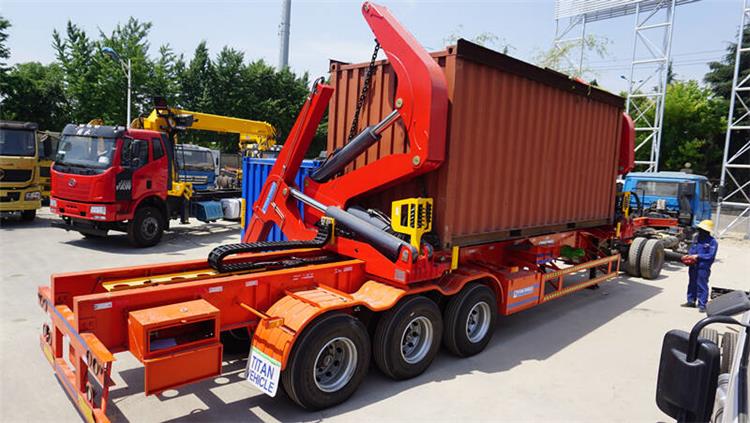

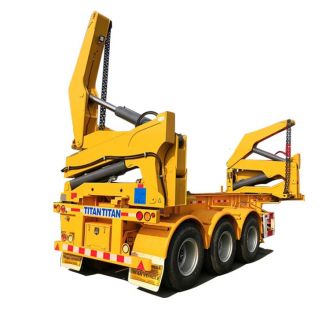

37 Ton 40Ft Container Sidelifter Trailer for Sale
37 Ton 40Ft Container Sidelifter Trailer for Sale
37 Ton 40Ft Container Sidelifter Trailer for Sale
Max. lifting capacity: 37 Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Max.pressure of hydraulic system: 28Mpa

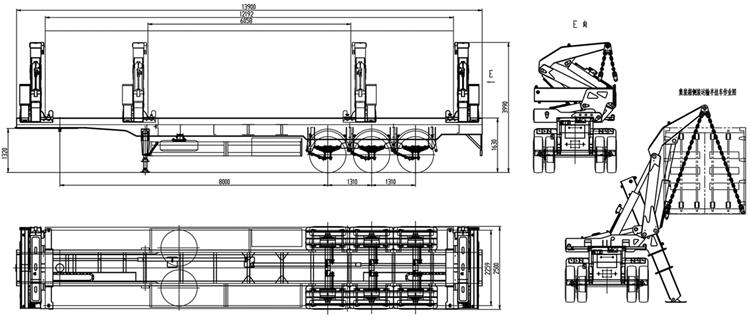

Dimension(L*W*H): 13900*2500*3900mm
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
We supply Worldwide Transportation, Trucking, Rail, Defence, Mining, Forestry, and Intermodal. which provides superior container handling equipment.

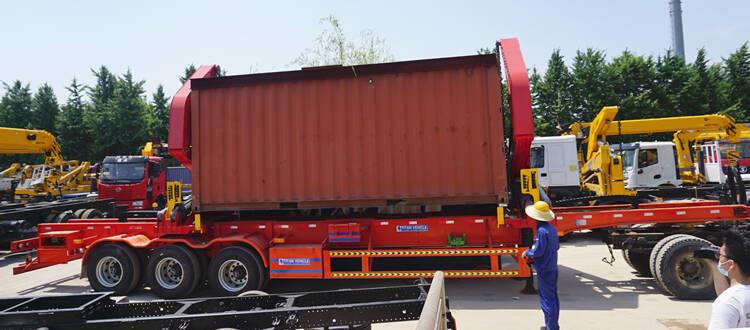

Time-saving and improving efficiency: 40ft contaienr sidelifter trailer can be productive all day, enabling loading, unloading and transporting containers by itself easily.

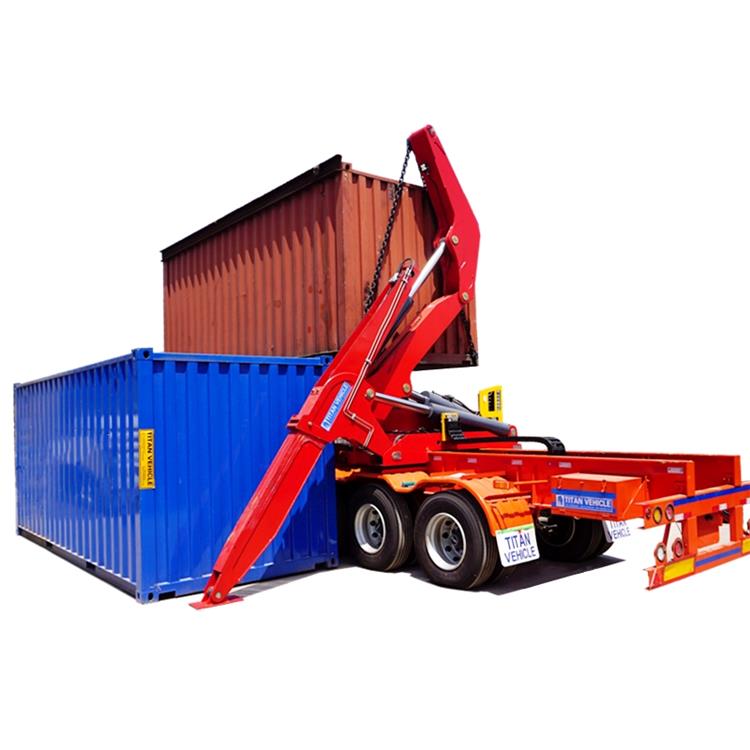

Flexible solutions: With the 37 ton sidelifter trailer, you get closer and can lift between trailers safely and with high precision.
Famous WABCO braking valve, JOST landing gear for the main 40 ft side lifters crane container transport trailer. Famous NBB Germany Remote Control, easy to operate. 40ft sidelifter trailer for sale adopts wireless remote control technology, loading container just takes 10 mins.
Detailed operation video instruction video. Overseas engineers provide technical services. 24 hours online service.
