4 axle 40m3 bulk cement trailer for sale tank body as a whole is made of high-strength alloy steel from a well-known domestic manufacturer, with very tight welding, good airtightness, and good performance, and also adopts advanced technology, fluidized bed, non-planning structure, gas material separation device, and safe discharge device, which effectively reduces the weight of the vehicle and improves the discharge speed.
Each set of bulk cement tanker for sale can hold up to 100 cubic meters. It provides an ideal solution for transporting large amounts of cement, especially for heavy construction projects, which is different from using a traditional 4 axle powder tanker for sale.

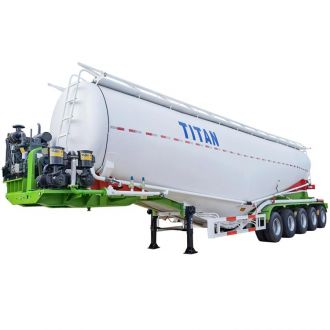

4 Axle 40m3 Powder Bulk Cement Tanker Transport Trailer for Sale
4 Axle 40m3 Powder Bulk Cement Tanker Transport Trailer for Sale

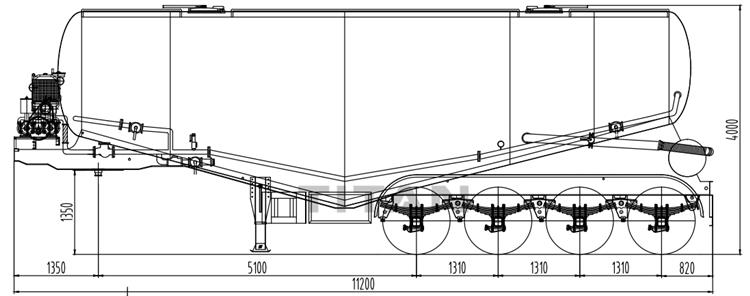

Dimension: 11200mm * 2000mm *4000mm (the exact size depends on the final design.)
Tanker body material : 5mm high strength wear-resistance steel
Payload : 40m3
Axles：4 axles
Tire：16 units
Application: transport lime, cement, powder etc.
Tank body thickness: 3.5mm
Compressor: 12m³ double cylinder air compressor
Spare tire rack: 2 units
Leaf spring: 10 pieces
Sprinkler: one sprinkler; car waxing
Diesel Engine: WEICHAI Brand
Compressor: BOHAI
Suspension: Heavy-duty mechanical suspension
Landing gear: JOST
Brake system: WABCO
Light: LED light (especially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service life, and avoid the vehicle getting rust
1. Running system

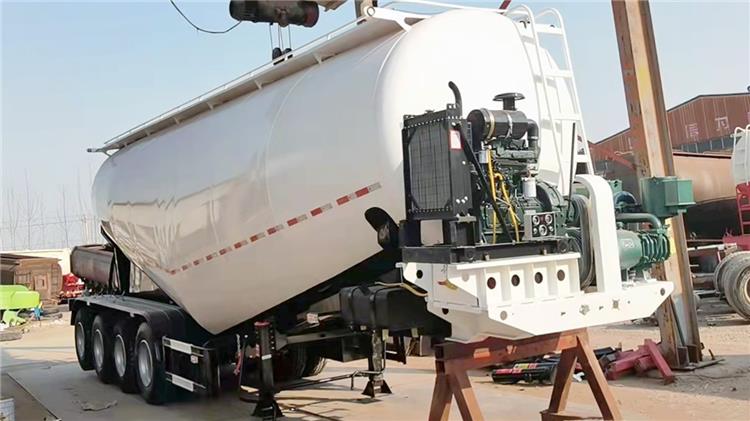

2. Power system:
Engine: The engine set provides power to the air compressor;
Power take-off: the main function is to take out the engine power and transmit it to the air compressor through the transmission shaft.
3. Air compressor
4. Air pipes: Including air intake, air distribution, pressure relief, secondary blowing, etc.
5. Tank: the sealed container for loading materials.
6. Loading and unloading device: the loading tank can be connected with the storage tower pipeline, which is controlled by a butterfly valve and is used for conveying materials.
