40 feet flatbed trailer is the most popular model, it can transport 1×40ft or 2×20ft container.
As a professional flatbed trailer manufacturers, 3 axle flatbed trailers for sale can be customized according to customer requirements.

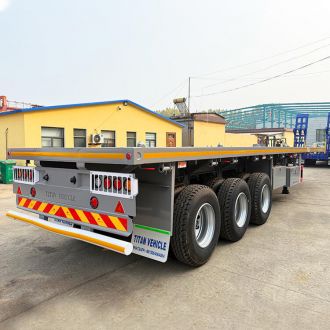

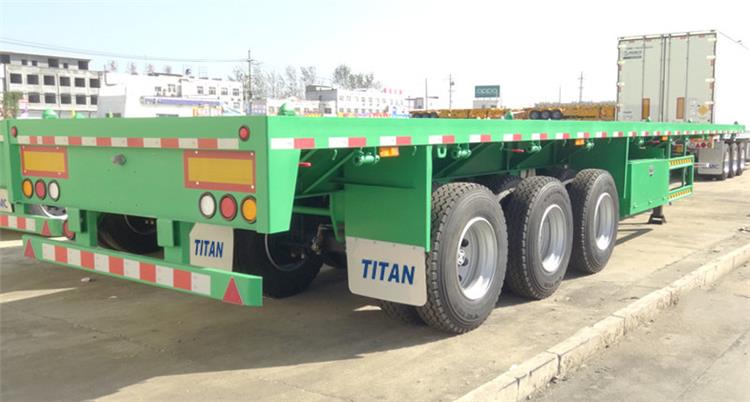

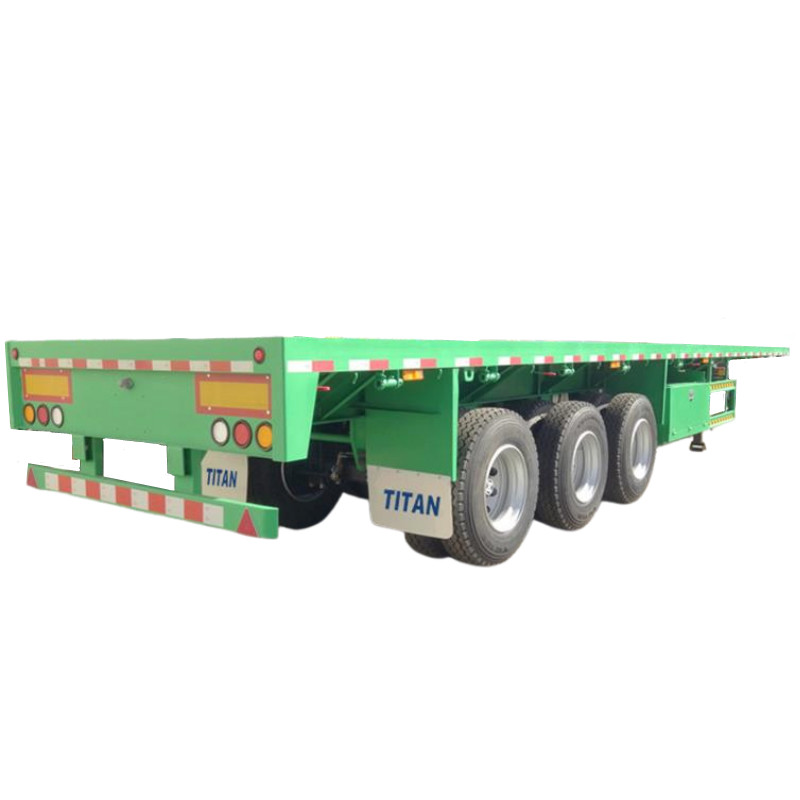

China 3 Axle 40 Feet Flatbed Trailer for Sale Manufacturers
China 3 Axle 40 Feet Flatbed Trailer for Sale Manufacturers
Model: China flatbed trailer
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 3 axle flatbed trailers for sale

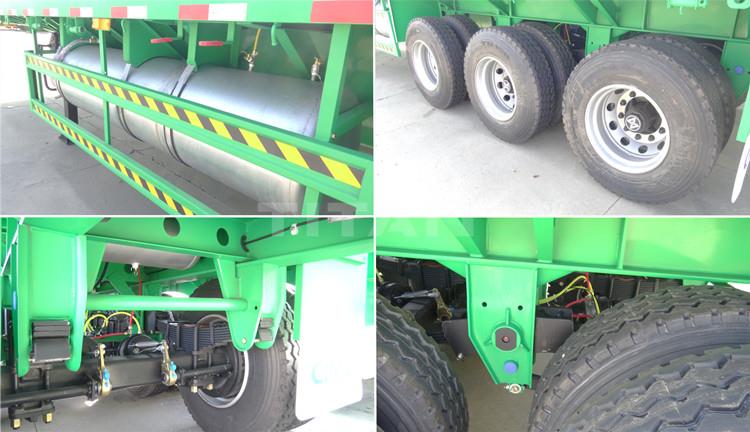

Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

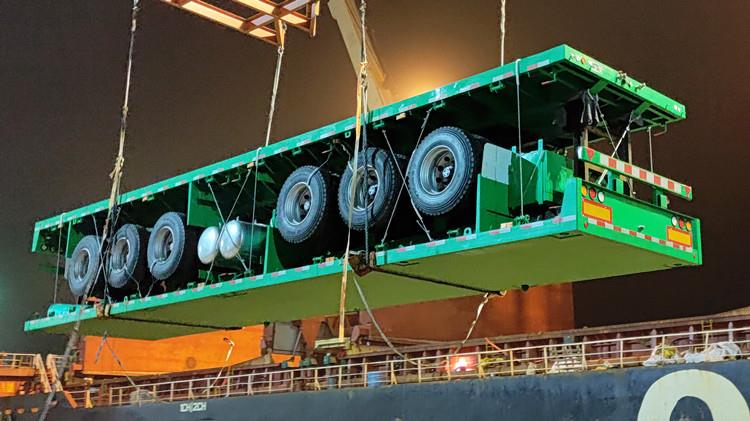

When transporting 40 feet flatbed trailer for sale, many customers use container transportation, some customers are bulk carriers or ro-ro ships. We will recommend suitable transportation methods to customers according to different situations.

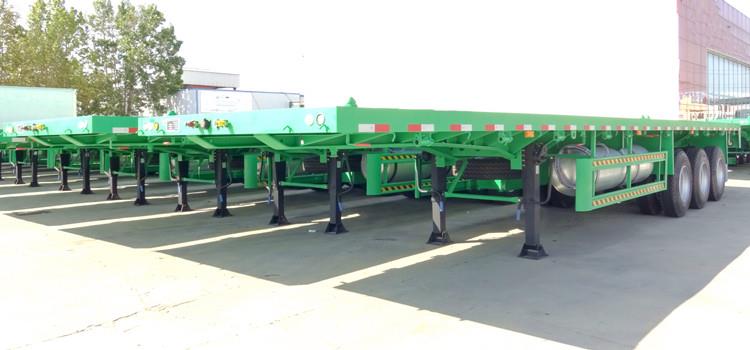

All 3 axle flatbed trailers for sale will undergo rigorous testing before delivery to ensure the quality. As a flatbed trailer manufacturers, we have professional technicians to operate. In addition, a layer of wax will be sprayed on the 3 axle flatbed trailer to prevent seawater erosion, and then a layer of rain cloth will be wrapped to prevent moisture so that it is foolproof.
