20 FT Container Skeletal Trailer

20 FT Container Skeletal Trailer

10500 USD

Tri axle skeletal trailer for sale can be customized to 20ft/40ft/45ft. We also provide customers with different options.

SKU: 20 FT Container Skeletal Trailer
MPN: FAWTRAILER008
Brand: Flatbed Trailer

Description of tri axle skeletal trailer for sale:

Use a 20ft container skeletal trailer to transfer goods, which can be directly packaged in the consignor’s warehouse, and then transported to the consignee’s warehouse for unloading. There is no need to remove the goods from the packing box and replace them during replacement or midway transportation.

Tri axle skeletal trailer for sale can be customized to 20ft/40ft/45ft. We also provide customers with different options.

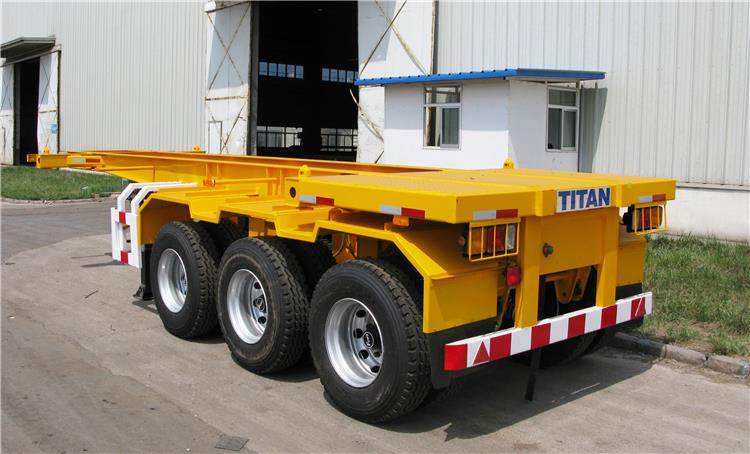

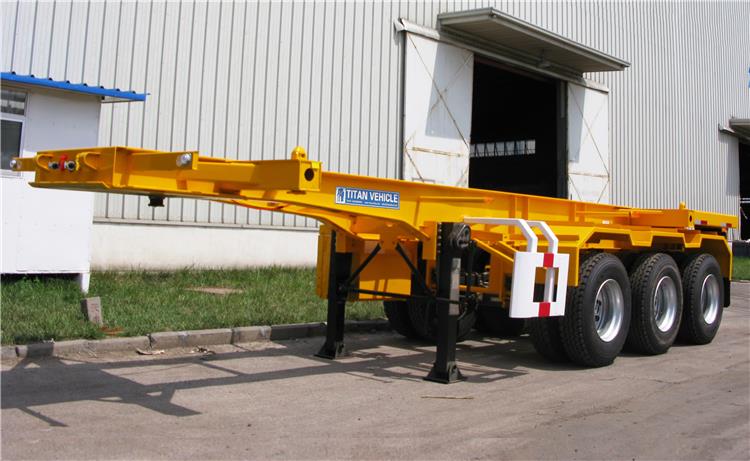

Tri Axle 20 FT Container Skeletal Trailer for Sale

Tri Axle 20 FT Container Skeletal Trailer for Sale

Tri Axle 20 FT Container Skeletal Trailer for Sale



Specifications of 20 ft container trailer for sale:

Dimension(mm): 7200x2500x1620mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
