The main beam of tri axle flatbed trailer for sale is made of Q345 high strength steel, who has more loading capacity. The 40 ft flatbed trailer for sale service life will be more than 10 years.
The main beam of tri axle flatbed trailer for sale is made of Q345 high strength steel, who has more loading capacity. The 40 ft flatbed trailer for sale service life will be more than 10 years.

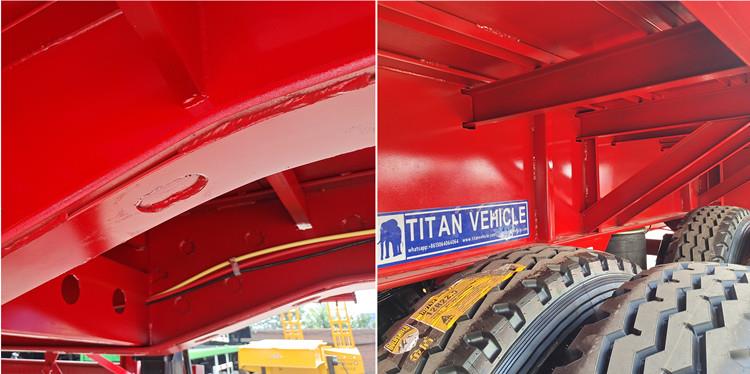

We also adopts advanced submerged arc welding technique, there is no welding interface between middle, bottom and upper plate of main beam.
Welcome to contact us to get price of flatbed trailer in nigeria!
Price of 40 ft Tri Axle Flatbed Trailer for Sale in Nigeria
Price of 40 ft Tri Axle Flatbed Trailer for Sale in Nigeria
Details of Price of 40 ft Tri Axle Flatbed Trailer for Sale in Nigeria
Price of 40 ft Tri Axle Flatbed Trailer for Sale in Nigeria

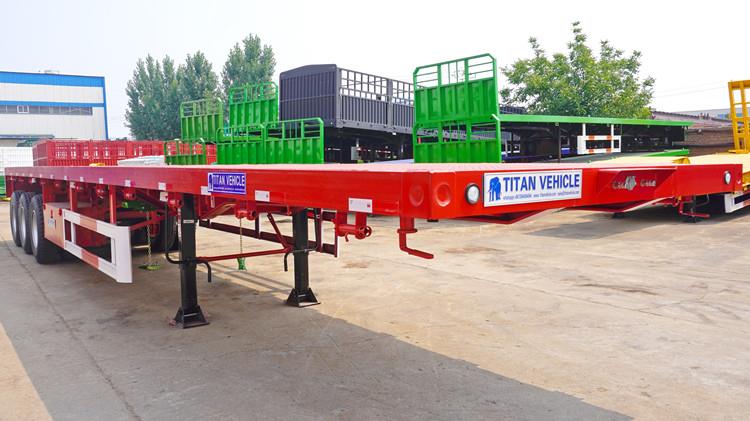

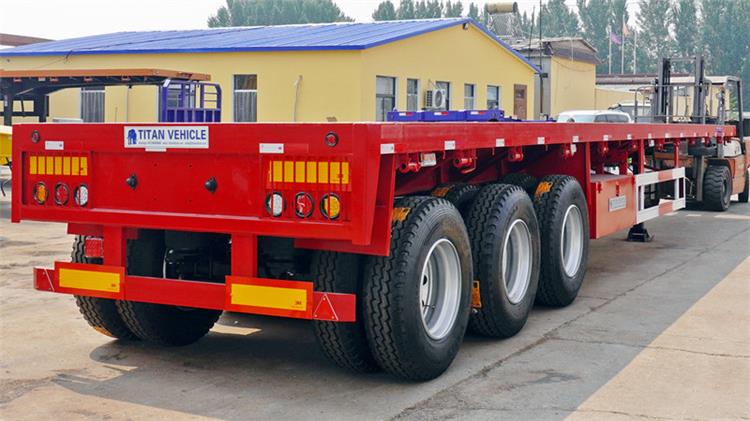

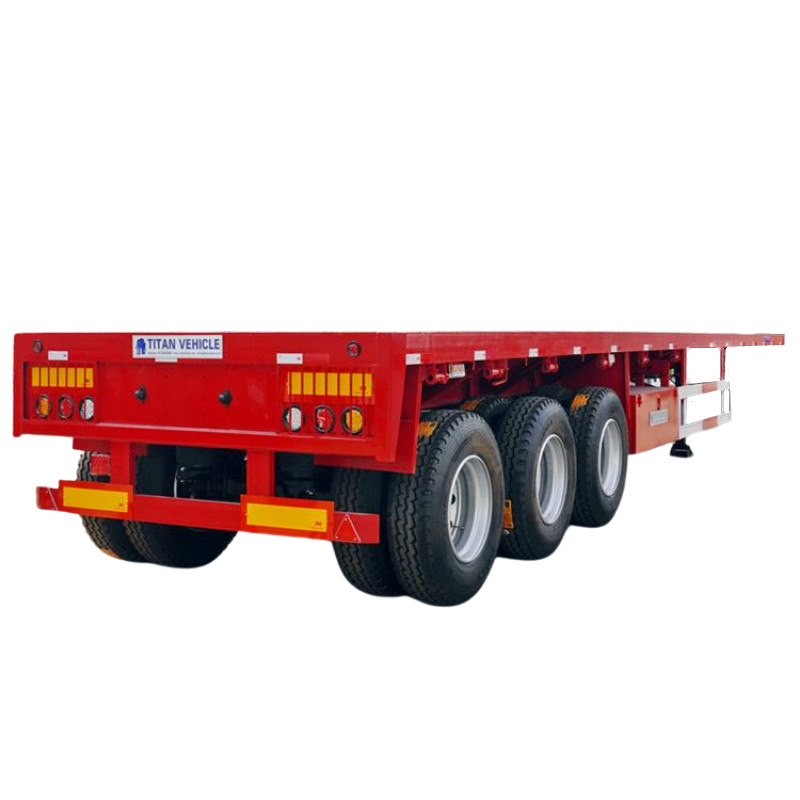

Model: 40 ft flatbed trailer for sale

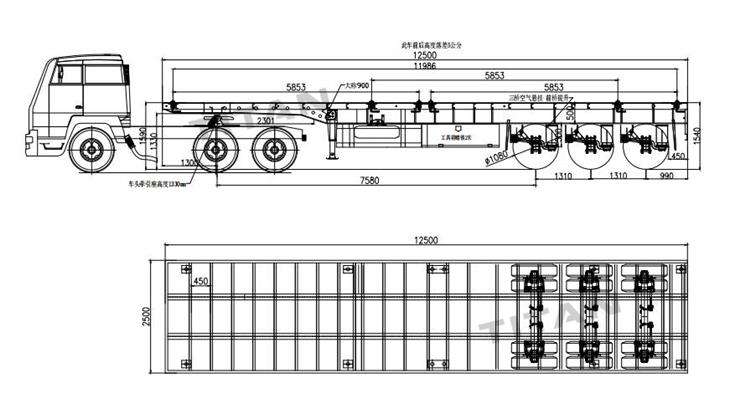

Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T

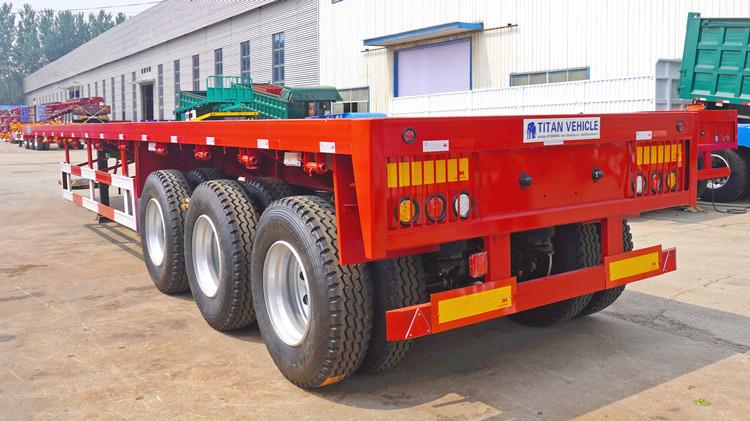

Axles: Tri axle flatbed trailer
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5

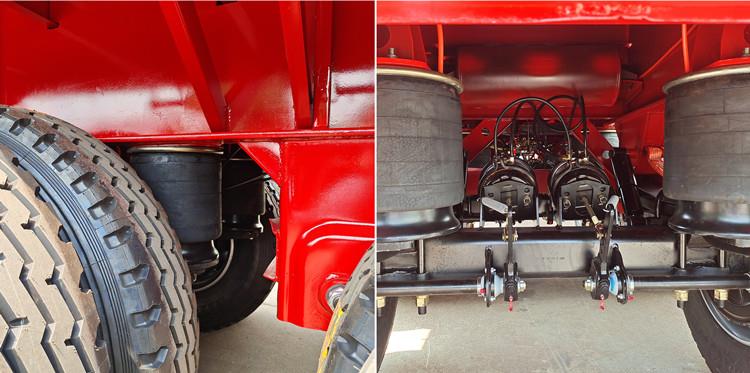

Suspension: Air suspension(China brand or BPW brand)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

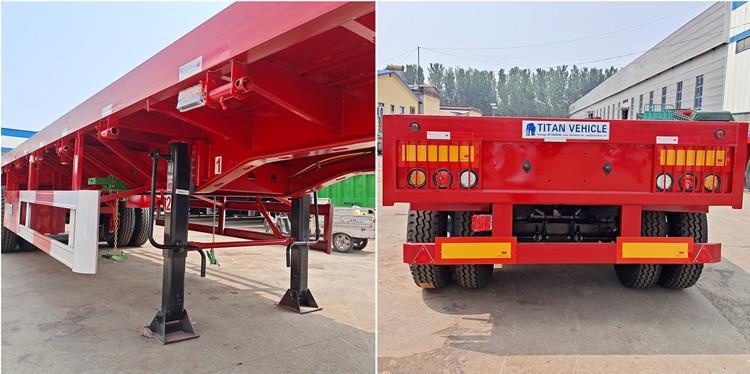

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
