Tri axle chassis shipping container trailer is equipped with 12 sets of locks, which can be used to transport a 40 ft container or two 20 ft containers, or a 20 ft container alone.
The 40 ft container trailer for sale has been specifically designed for rigorous wharf work throughout Africa. We offer our customers many different options to suit their needs.
Tri axle chassis shipping container trailer is equipped with 12 sets of locks, which can be used to transport a 40 ft container or two 20 ft containers, or a 20 ft container alone.

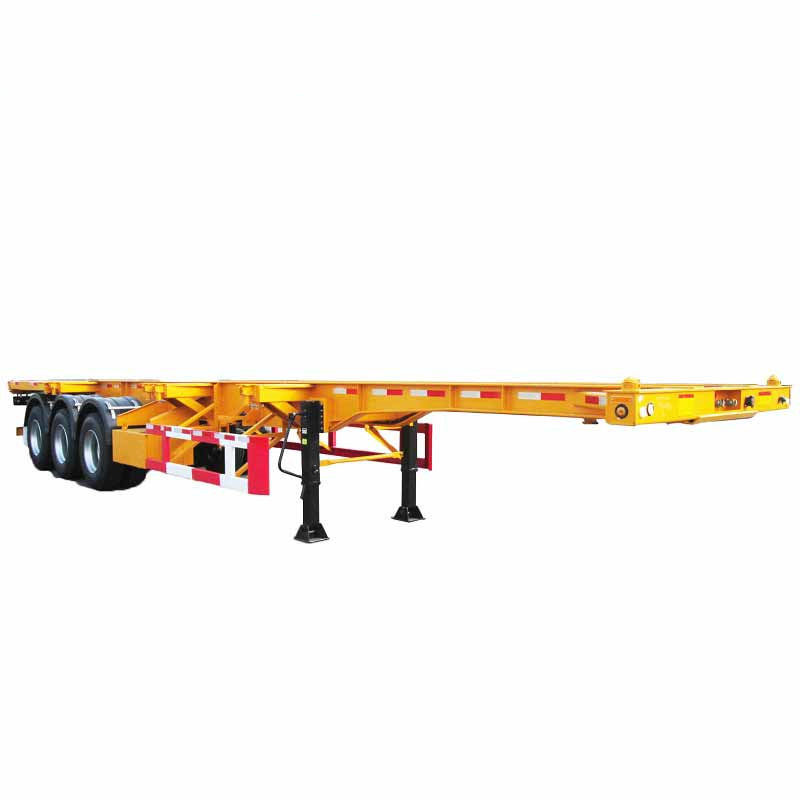

Tri Axle 40 FT Shipping Container Chassis Trailer for Sale
Tri Axle 40 FT Shipping Container Chassis Trailer for Sale

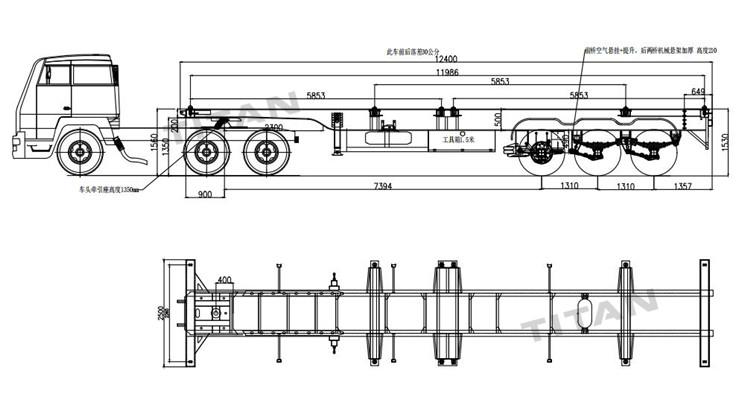

Dimension(mm): 12400x2500x1530mm
Loading capacity(ton): ≤60T
Axles: Tri axle chassis
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Air suspension and Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container

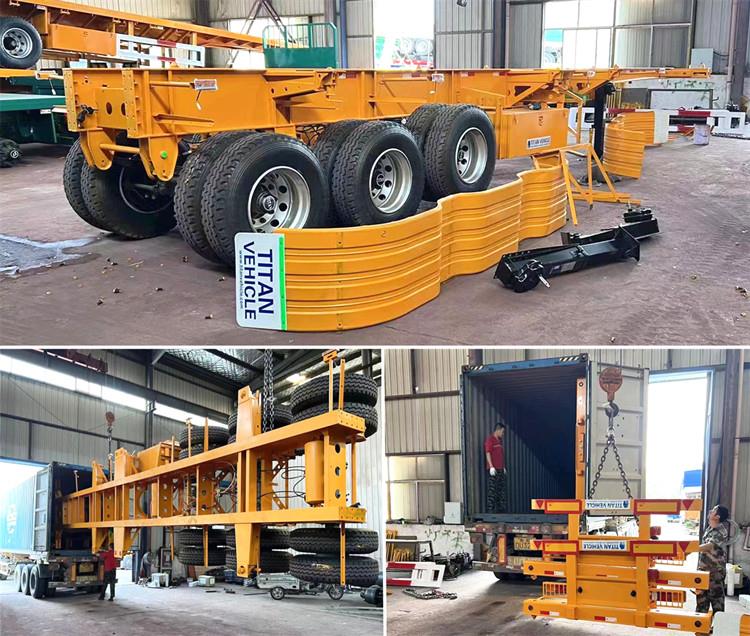

Many customers use the method of container transportation, which has low transportation costs and short transportation time.
Some customers choose bulk carriers or ro-ro ships. Before the container chassis is shipped, the tri axle chassis is sprayed with wax and covered with a tarpaulin.
