The 3 axle flatbed semi trailer you want is one of the most advantageous products. It is mainly used for transporting 20&40ft containers or some other cargo.
We also have the 2 axles, 3 axles, 4 axles, the model with front board, the color could be painted as your request; the size and load can be customized according to your requirements. We also can customized according to your request 100%.

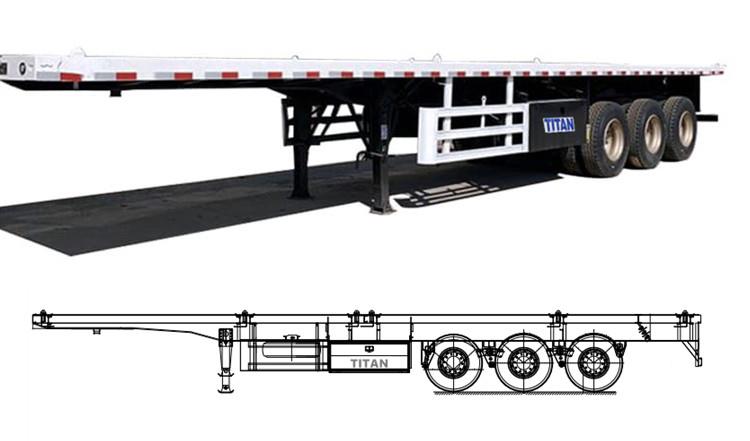

3 Axle 40 Foot Flatbed Semi Trailer for Sale
Model: 40 foot semi trailer
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 3 axle flatbed semi trailer
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. The main beam of 40 foot flatbed semi trailer for sale is made of Q345 high strength steel,who has more loading capacity. The service life will be more than 10 years.
We also adopts advanced submerged arc welding technique,there is no welding interface between middle, bottom and upper plate of main beam.
The middle plate is 500 mm high, 8 mm thick; upper plate is 14 mm thick, 140 mm wide; bottom is 16 mm thick, 140 mm wide.
2. 3 axle flatbed semi trailer reinforces the main beam. As for the gooseneck parts of the main beam, the bottom plate has been reinforced, which makes the main has small deformation even if loading heavy things. The middle plate at gooseneck part is double.
3. The height of the side beam is 160mm. the height of the across beam is 100 mm, and every across beam has it own support. And there are 6 beam on the across beam. All of the through beam are supported by the Inclined support frame, and the distance of these frame no more than 500mm, which can ensure the 3 axle flatbed semi trailer price not easy to deform.
