The size of the 40 foot flatbed trailer for sale loading area is determined according to the standard container size. A twist lock device for fixing the container is provided at positions corresponding to the four corners of the bottom of the container.

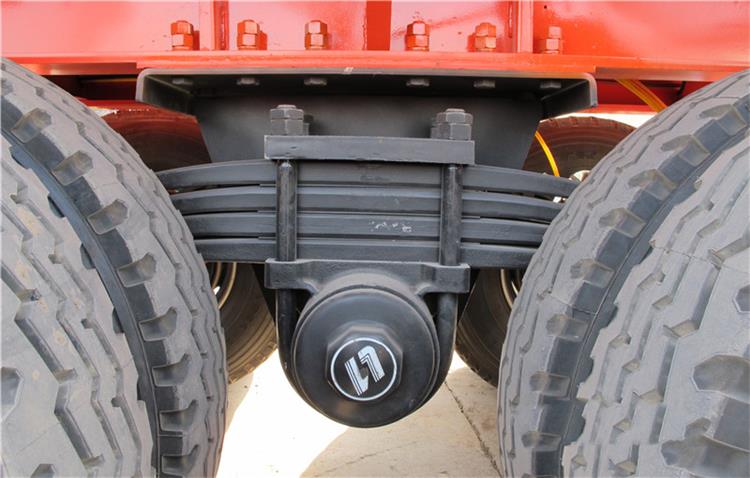

The 2 axle flatbed trailer with bogie suspension is to reduce the common leaf spring front and rear brackets to a single bracket connected to the car body. Compared with ordinary leaf spring suspension, the bearing capacity of bogie suspension is bigger.
2 Axle 40 Foot Flatbed Trailer with Bogie Suspension for Sale
2 Axle 40 Foot Flatbed Trailer with Bogie Suspension for Sale
2 Axle 40 Foot Flatbed Trailer with Bogie Suspension for Sale
Model: 40 foot flatbed trailer for sale
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 2 axle flatbed trailer
Tire: 8 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Bogie suspension
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
